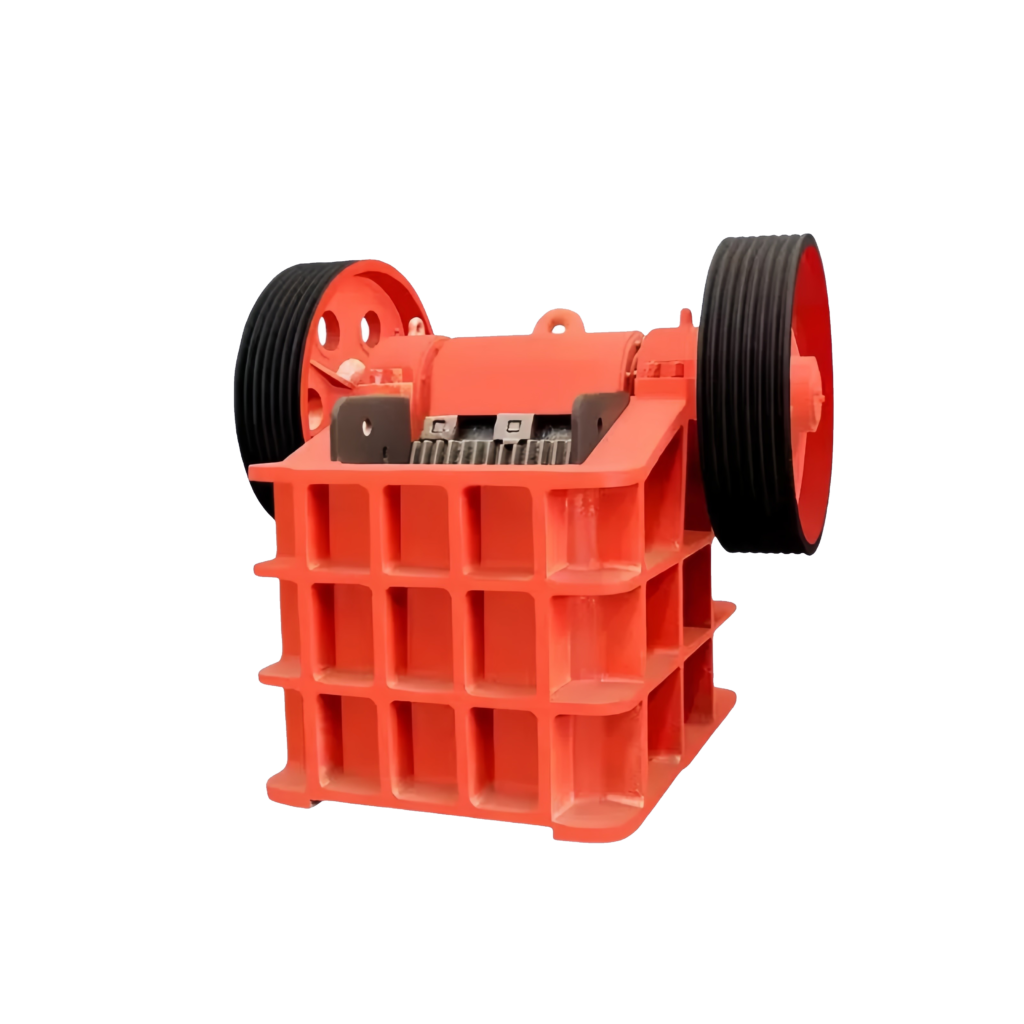

Jaw Crusher
【Capacity】1–1,120 t/h
【Feed Size】<1,200 mm
【Output Size】10–360 mm
【Materials Crushed】Granite, dolomite, river pebbles, quartz, calcite, etc.
【Applications】Jaw crushers are primarily used in the primary crushing stage to reduce hard, brittle materials to smaller sizes for subsequent processing. They are widely used in industries such as mining, road aggregate production, quarrying, and sand and gravel operations.
Advantages
【What is a jaw crusher?】A jaw crusher is a compression-type crusher, typically installed at the front end of ore or rock crushing plants as a primary crusher to reduce the particle size of hard rock. They are usually double-toggle machines consisting of a fixed jaw plate and a movable jaw plate. The output particle size can be controlled by adjusting the discharge opening. Due to their strong crushing capability and high efficiency in handling hard materials, jaw crushers serve as an excellent alternative to primary gyratory crushers.
【What types of jaw crushers are there?】Single-toggle and double-toggle jaw crushers; industrial and small-scale laboratory jaw crushers; diesel-powered jaw crushers; hydraulic jaw crushers; stationary, mobile, and crawler-mounted jaw crushers; PEX/PE series jaw crushers.

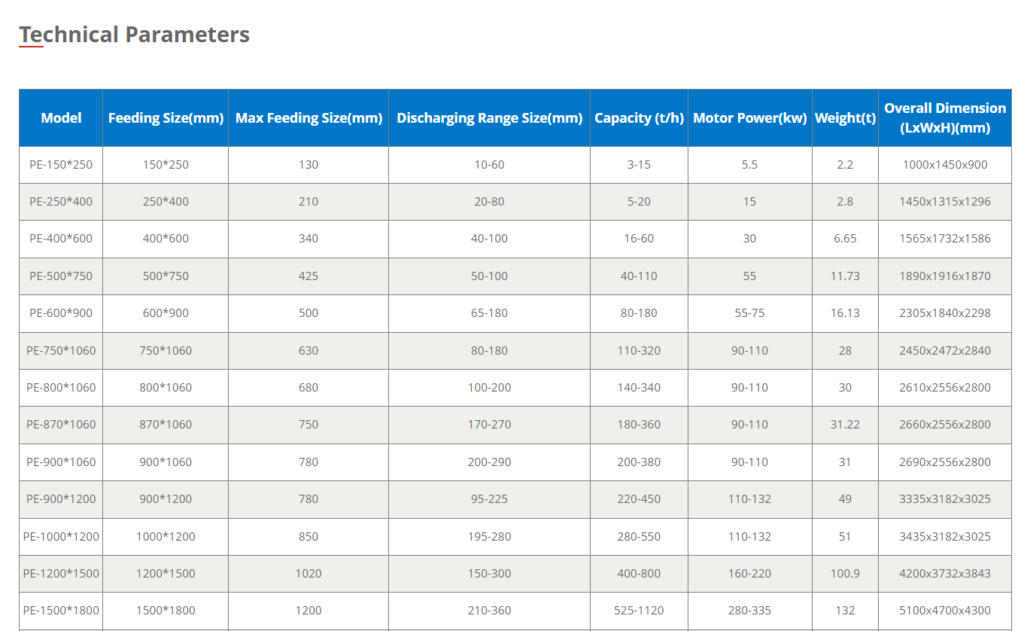

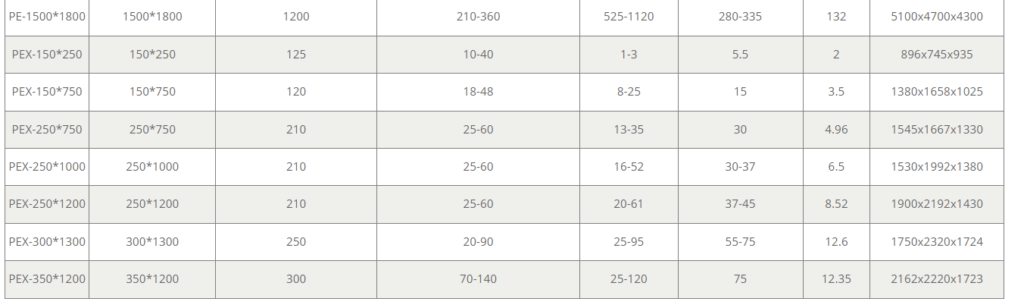

【What are the dimensions and capacities of jaw crushers?】The size of a jaw crusher is determined by the rectangular or square feed opening at the top of the jaw plates. The table below shows the different jaw crusher settings for coarse and fine crushing applications, including PE (coarse crushing) and PEX (fine crushing) models.
【Jaw Crusher Production Line】Customized jaw crusher production lines can be designed to meet your specific application requirements.
【Jaw Crusher Components】Flywheel, connecting rod, hydraulic cylinder, toggle plate, eccentric shaft, fixed jaw, movable jaw, etc. 【Jaw Crusher Working Principle】Driven by a motor via belts and pulleys, the eccentric shaft pushes the swing jaw against the fixed jaw, creating a crushing action that compresses the material to the desired particle size. The crushed material is discharged through the outlet, with the discharge size controlled by the gap at the bottom of the crusher.
【Jaw Crusher Manufacturer】We manufacture various types of rock crushers designed to deliver maximum efficiency, safety, and productivity for mining, aggregate, and crushed stone production applications; our products serve as alternatives to Nordberg and Sandvik jaw crushers. Jaw crushers are available in stock; contact us for the best pricing.
【Jaw Crusher Price】Do you need a single jaw crusher or a complete crushing production line? Prices depend on the material to be crushed and the required production capacity. You may be interested in specifications, costs, and how to select the right jaw crusher. What are the differences between jaw crushers and impact crushers? What spare parts do we supply? Please contact us to speak with our engineers online.
